TGL Series Slow and Quiet Grinder

Working Principle

Slow mute series crusher for the vertical crushing structure, the material from the crusher hopper into the crushing chamber, the use of rotary knives rotating plough, knife using coarse and fine crushing synchronous, the upper hook off the lower crushing. Fixed knife and movable knife at the same time shear and get crushed. The crushed material is mixed with the new material in the storage barrel according to the ratio of the two materials, and then directly transported to the moulding machine by the suction machine.

Features

1、Tooth nibbling knife design, used for crushing all kinds of hard and brittle plastic defective products, defective edge crushing and recycling: especially suitable for crushing and recycling of PC, nylon, ABS and other hard sprues.

2, the use of rotary and pineapple knife design without screen, crushed particles uniform dust content is very small.

3, removable cleaning design: into the hopper crushing knife filter can be removed to clean up fast and convenient

4, reasonable machine structure and small size does not take up space at the bottom of the casters are equipped with easy movement

5, 25 ~ 30RPM low speed crushing power saving and no noise

6, crushing bin casting moulding wear-resistant

7, hollow shaft gear reducer motor drive without refuelling to save space

8, motor overload protection device

9, removable cleaning design, cleaning fast and convenient.

10、Cutter material is made of high quality SKD-11 (optional) for long time use.

11, 30S immediately take back to reduce the water mouth material of the wet oxidation and other impact on the quality.

Scope of Application

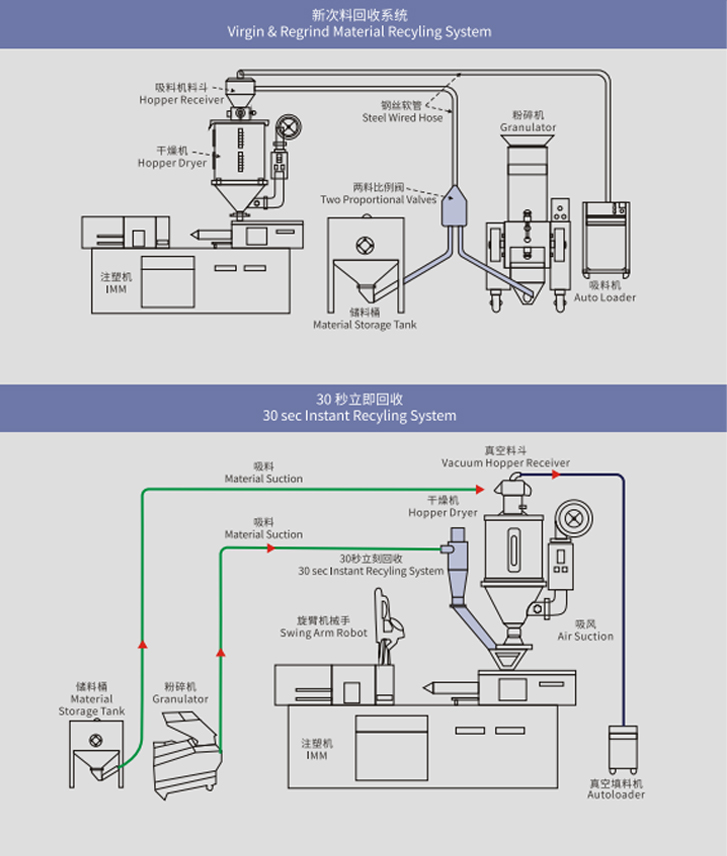

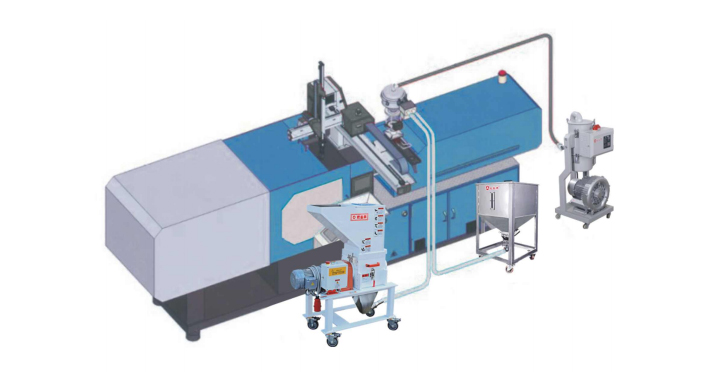

It is suitable to be placed next to the injection moulding machine and used with the manipulator to crush the edge of the machine or a small amount of defective material by a conveyor belt. In addition, the crushed material can also be matched with 30 seconds immediate recovery system, by the fan will be sent to the cyclone dust collector, the powder will be isolated, recycled to the dust bag, granular material with the dryer inside the new material, according to the two material proportioning valve adjusted mixing and then through the bottom of the manual proportional valve mixing dust collector together into the host use.

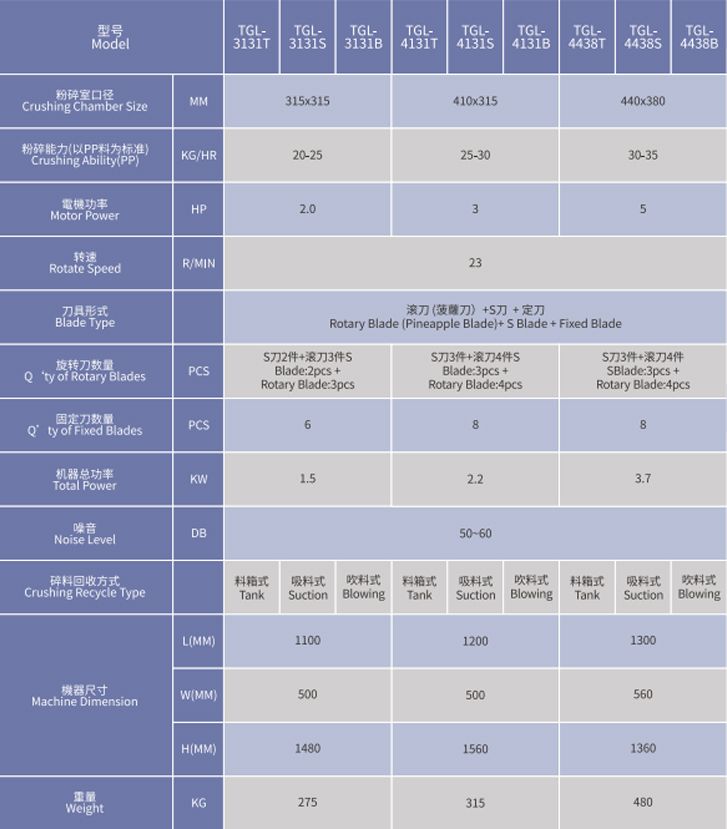

Product Specification Sheet
