TGM Series Medium Speed Grinder

Working Principle

Medium-speed crusher with Wu love-style cutter with cutting knife structure, patented multi-directional cutting tool design, to achieve completely dust-free crushing effect, crushed materials and storage barrels of new material, the proportion of root control of the two subjects.

After mixing, it is directly transported to the moulding machine by the suction machine.

Characteristics

1、The feeding hopper adopts double-layer stainless steel structure, which is beautiful and strong, with good sound insulation effect.

2、Detachable clearing design: the feeding hopper, crushing knife filter can be detached to clear the material quickly and conveniently.

3、Reasonable structure of the machine, small volume does not occupy space, the bottom is equipped with casters, easy to move.

4、140~300rpm medium speed crushing, less dust, power saving and low noise.

5, knife material using high-quality SKD-11 (optional) durable, ladder-type arrangement of knives to enhance cutting capacity, improve crushing efficiency.

6, various specifications of aperture screen can meet the needs of various products, movable screen is easy to disassemble, easy to clean and change the colour.

7, perfect protection devices, stable and reliable performance, upper and lower box and access to the mouth of the limit switch is set to open the equipment in the power-off state to ensure that the operator

Range of application

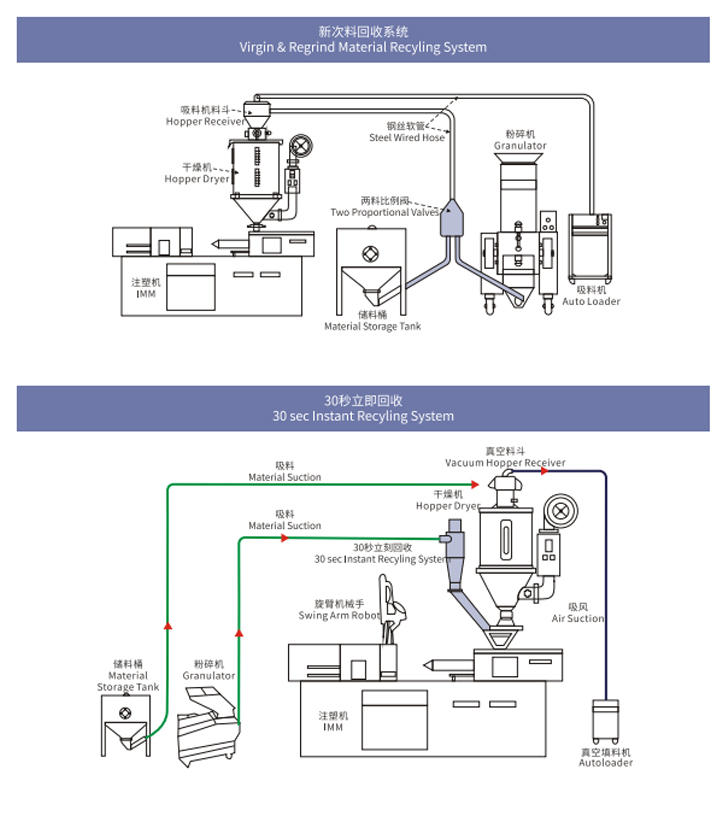

It is suitable to be placed next to the injection moulding machine and used with the manipulator to crush the edge of the machine or a small amount of defective materials by the conveyor belt. In addition, the crushed material can also be matched with 30 seconds immediate recovery system, by the fan will be sent to the cyclone dust collector, the powder will be isolated, recycled to the collection of heavy bags, granular material with the new material in the dryer, according to the ratio of the two materials to adjust the mixing of boring and then through the bottom of the manual proportionality of the dust collector mixing together with the use of the host computer.

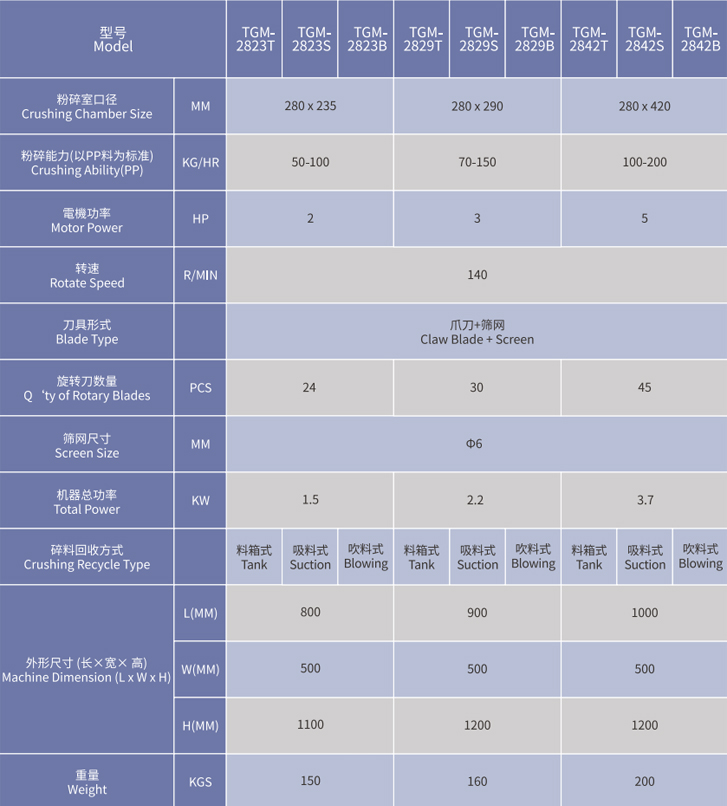

Product Specification Sheet
