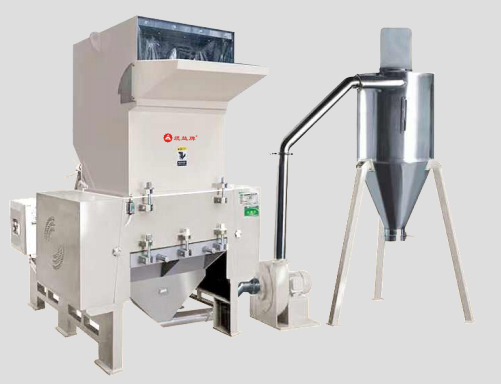

TGP Series Powerful Grinder

Working Principle

Powerful crusher adopts claw knife and blade knife structure, crushing all kinds of plastic defective products. Crushed materials and storage barrels of new materials, root fox two material ratio valve adjustment mixing directly from the suction machine to the moulding machine.

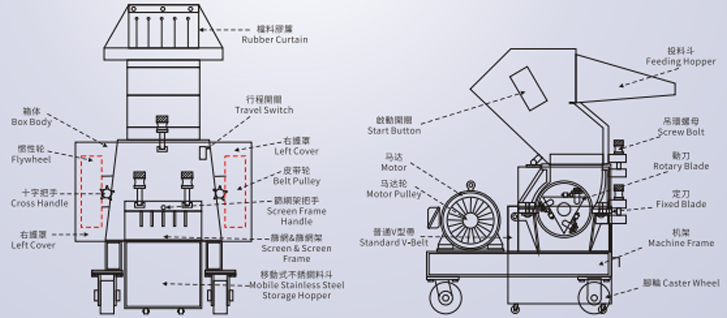

Outer Structure Diagram

Characteristics

1、Unique claw knife, blade knife design, suitable for crushing boxes, thin tubes, blow moulding parts and large pieces of various materials and shapes of plastic defective products, can be focused on crushing and recycling.

2, claw knife type can be dispersed by the force, so that each piece of knife shear increase, especially suitable for thick products and large pieces of rubber head, hard material blocks, etc., effectively improve the cutting force of the tool, reduce tool wear.

3、The structure of blade knife is between claw knife and flat knife, which is suitable for crushing ordinary sheet, pipe, profile, plate and packaging materials, such as plastic products, sprue.

4、500~600rpm high speed crushing, crushing efficiency is good, and is equipped with double noise reduction equipment low noise.

5、Motor with overload protection device, and power supply chain protection system, with cleaning tool protection device operation, cleaning and reliable to ensure the reliability of maintenance personnel.

6, feed hopper and screen can be customised stainless steel, crushed transparent material, white material, such as convenient cleaning to ensure that no pollution.

7, knife material imported high-quality SKD-11 (optional) durable.

8, screen aperture 10HP & below the standard configuration for 8MM, 15HP & above the standard configuration for 10MM, other specifications can be customised.

9, large machines can be installed with a cooling water circulation system, the heat generated by the machine to the outside of the machine, can effectively reduce the working temperature of the machine body and to avoid clumping of crushed material.

10, small machine casters, easy to move. Large machine with adjustable shock-absorbing feet (optional), stable work.

Range of application

Suitable for crushing all kinds of plastics, including injection moulding machines, bottle blowing machines and other waste materials can be crushed and recycled centrally, and then adjusted and mixed with new materials for the host computer to use.

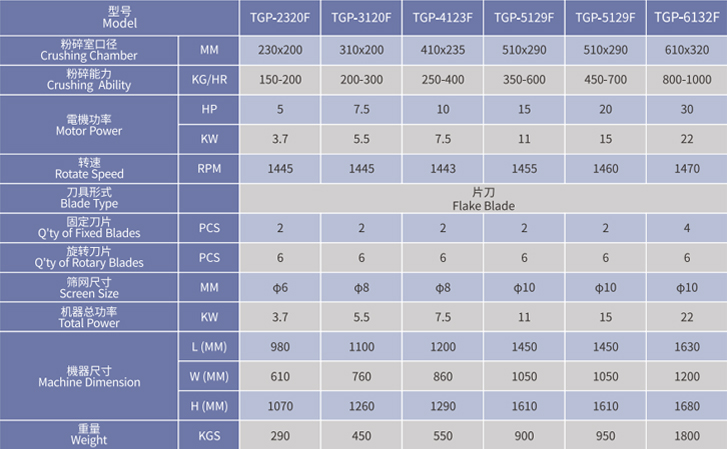

Specification table of blade type

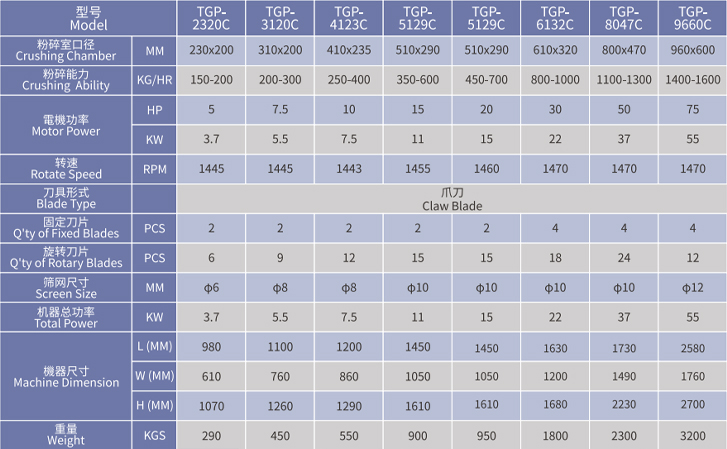

Claw Knife Type
