Inclined Arm & Side Pick-up Type Manipulator

Working Principle

Suitable for 30-250 ton horizontal/vertical injection moulding machine, mainly used for simple finished product and spout taking out. The upper and lower hand kidneys are of single and double cut-off type, the upper and lower strokes are 650/750/850mm, and the two-platen moulds are used. Its up and down, pulling, spinning in, spinning out, are driven by pneumatic pressure, fast speed, high efficiency, is an affordable type of robot. Installation of the horizontal manipulator can increase the seating capacity by 30%, reduce the defective rate of the product, protect the safety of the operator, reduce the labour, and control the production volume to reduce the waste.

Characteristics

1、Compact hand-held controller, user-friendly operation interface, safe and easy to operate.

2、Open teaching mode can be used flexibly to teach special action programmes to meet the process requirements of various special products.

3, claw rotation mechanism design: the front of the arm can be rotated 90 ° (H-650 front rotation of 90 °), fixture suction clamp equipped with no material detection device.

4、The upper and lower arms are made of high-strength aluminium profiles with precision linear slide rails; light weight, good rigidity, low friction coefficient, which can achieve the requirements of fast take-out speed, high efficiency, low vibration and long service life.

5、X-axis can be rotated by 90° to facilitate the mould change operation, and equipped with hydraulic buffer to make the in-and-out stroke more stable.

6、Y-axis is equipped with anti-slip cylinder to ensure the safe operation of the manipulator in case of sudden air failure.

7、Z-axis rotary arm can be adjusted 45-90 angle, according to the actual demand to change the direction of the object. (i.e. positive or negative operation side of the injection machine).

8、Safety protection device: linked with the injection moulding machine, double clamping safety protection to ensure the safety of the mould. Remove the product to make sure that the mould will not be locked until the product is removed.

9、Rapidly and accurately remove the sprued material from the mould and hand it over to the machine-side crusher for immediate recycling.

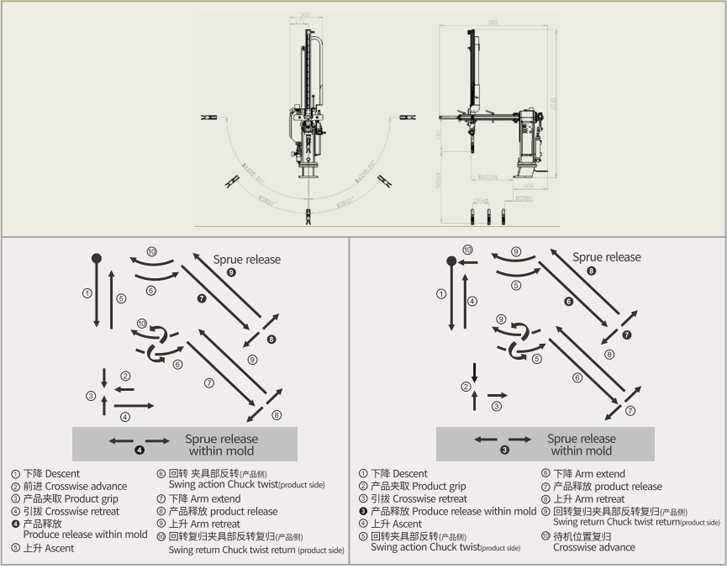

H Series Inclined Arm Machine

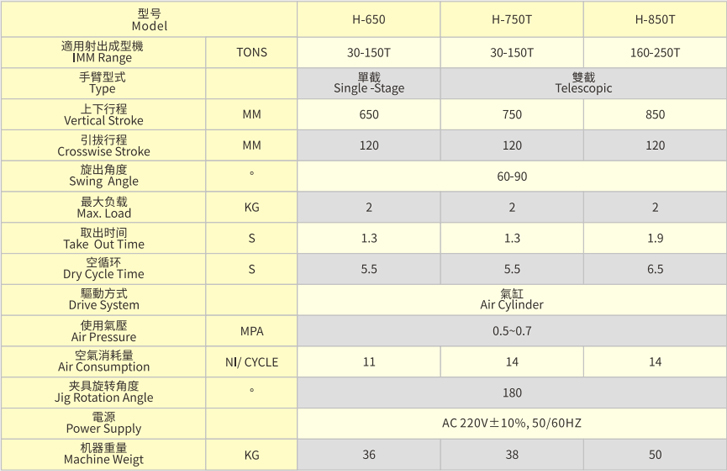

Horizontal Injection Moulding Machine Specification Table

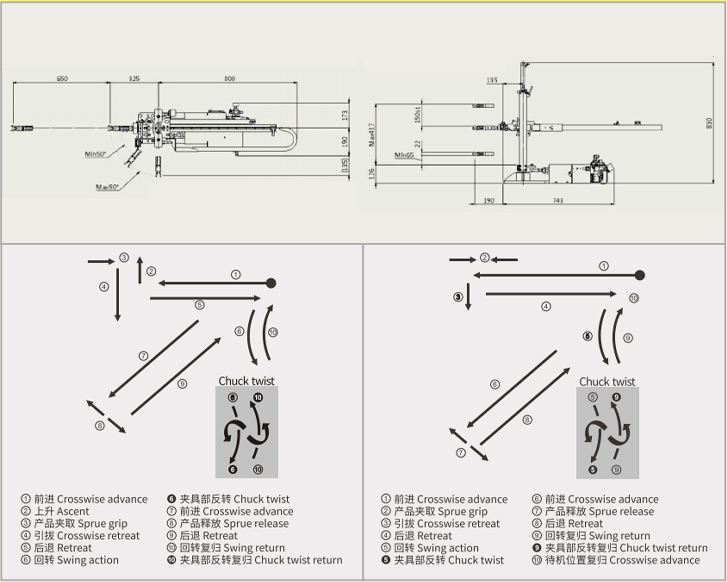

V Series Inclined Arm Machine

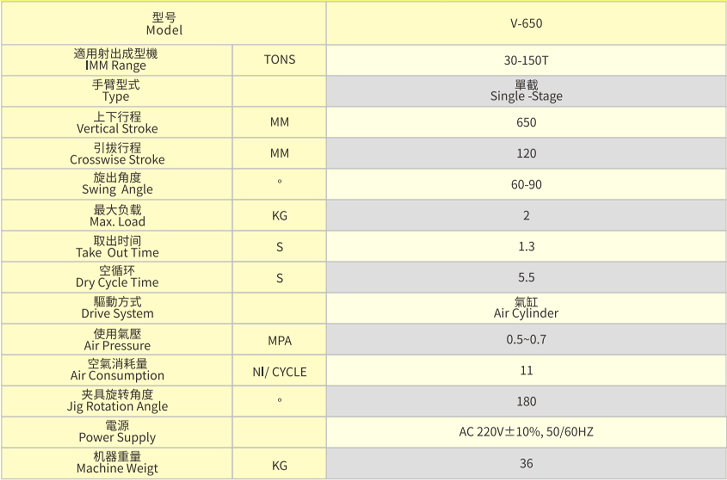

Vertical Injection Moulding Machine Specification Table
