Traverse type single-axis servo robot

Working Principle

Robots are automatic devices that mimic some of the movements of the human hand and arm, and are used for gripping and carrying objects or operating tools according to a fixed programme. In addition, it can replace the heavy labour of human beings to realize the mechanization and automation of production. The work is done mainly by the hand practice operation, mechanical movement mechanism and mechanical control system of the three major parts of the mutual cooperation and connection and composition. Hand is used to grasp the workpiece (or tool) parts, according to the shape of the object to be grasped, size, weight, material and operational requirements and a variety of structural forms. Motion mechanism and control system can make the hand to complete a variety of rotation (swing), movement or compound motion to achieve the required action, change the position and posture of the object to be gripped. The movement mechanism of the lift, expansion, rotation and other independent movement to complete the grasping and placing objects.

Characteristics

1、The controller adds perfect safety protection function to provide perfect safety protection for the operator and the injection moulding machine. Special procedures can be modified according to customer's requirements to meet special moulds and requirements.

2、Palm type operator, can switch between Chinese and English operation screen, easy to learn. A variety of functions and procedures to choose from, automatic fault detection and recording, easy maintenance and problem solving.

3、High rigidity design of the body structure, stable structure with low vibration and long life.

4, traverse, draw and up and down units are high-precision linear slide rail, fast speed, noise, accurate positioning, wear-resistant, heat-resistant, long life without deformation.

5、Single-truncated arm, the use of precision linear slide, wear-resistant and long life. Adopt high rigidity aluminium alloy structure beam, can achieve fast speed, small vibration, long service life.

6、Double cut-off arm up and down with high rigidity aluminium alloy structural beam, light weight, strong structure, special design of the belt speed mechanism, greatly reducing the height of the whole machine not only with the height of the use of the plant but also increase the speed and stability of up and down.

7、High-performance Huaigou AC motor, with high-precision linear slide and belt drive, fast speed and low noise, positioning accuracy up to 0.1mm.

8、Fixture circuit: fast descending in the mould to take the object, slow descending outside the mould to place the object, with the function of "quick take, light put" action, for different products and different fixtures, to achieve stable and perfect take out action.

9、Components, structural design are used without oiling device, easy maintenance of machinery, long life (guide rail, Pan block should be regularly injected with oil: cylinder to comply with the regular grease.

10, the structure of lightweight design, reduce the weight of the components to help reduce the weight, built to a good plus, minus the speed, and with the microcomputer control system with a good match, can significantly save power.

11、Electronic components are used in well-known brand products. Stable quality and good interchangeability.

12, the installation of robots, can increase production capacity, reduce product defective rate, to protect the operator to reduce labour, accurate control of production volume, reduce waste.

Product Application

Injection moulding robot is a machine specially equipped for the automation of injection moulding production, which can reduce the heavy labour, improve the labour conditions and production safety; improve the production efficiency of injection moulding machine, stabilize the quality of the products, improve the yield rate, reduce the cost, and enhance the competitiveness of the company, the robot distinguishes between single-axis/three-axis/5-axis servo, and has different applications in the industry, which can be used according to the different requirements of customer's products and budgets. Selection with the use of. Single-axis is mainly used for product removal, 3/5-axis can do buried, take out the stack and so on and with the use of conveyor belts. With the development of the injection moulding industry, in the future, there will be continuous robots for feeding, mixing, automatic loading and unloading of moulds, recovery of waste and other processes, and will be towards the direction of automation.

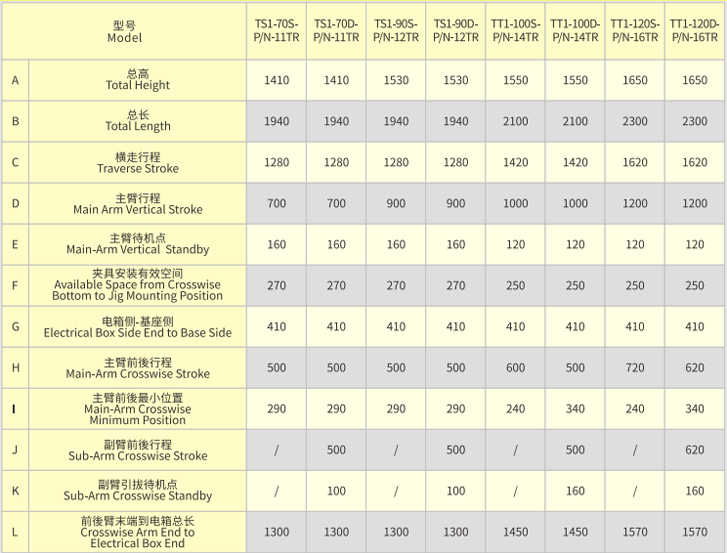

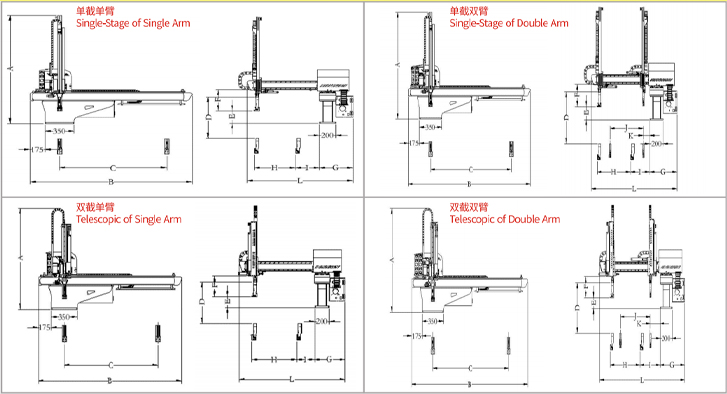

Robot Dimension

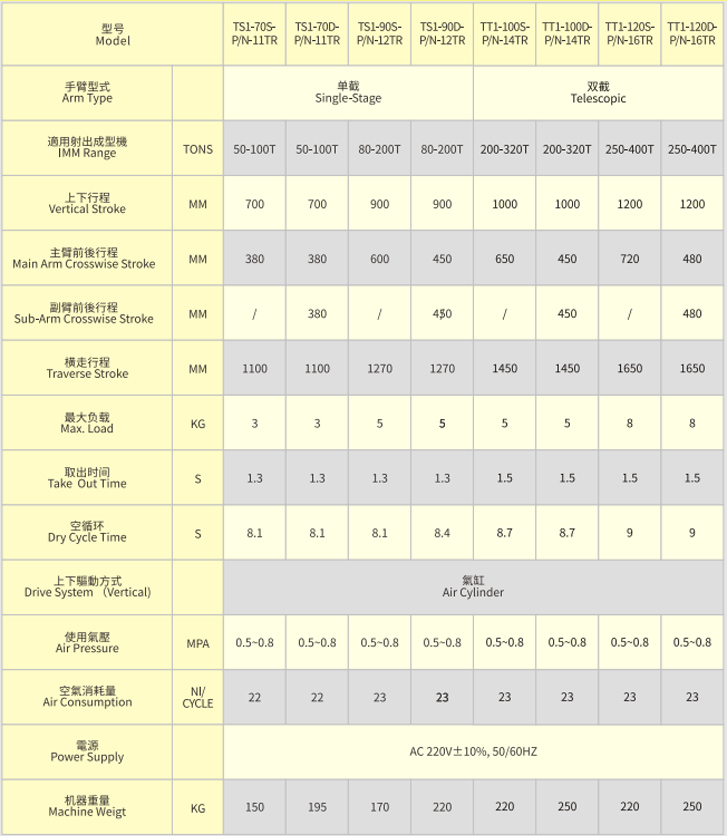

Product Specification Sheet
