TBP series conveyor belt with platform

Characteristics

1、PVC conveyor belt can effectively protect the product without damaging the product appearance.

2、Speed can be freely adjusted to adjust the speed 0~6M/Min, easy to operate and use.

3、Using universal casters with brake casters to fix and move conveniently.

4、Can be connected to external signals with the robot to achieve automation can also work independently.

5、Can be customised according to customer's special requirements.

6、Belt width from 300-600mm, every 100mm increment length from 1500-6000mm, every 500mm increment defined as a standard product.

7、Adjustable bracket and adjustable bracket series aluminium alloy adjustable bracket, mechanical height can be adjusted within a certain range according to the need.

8、TBS series slope type conveyor belt without platform, with machine holding hands to place products, generally used with the main conveyor line.

9、TBP series conveyor belt with platform is more convenient for robot to place the products and for robot to stack and so on.

10、TBT series of both sides of the same height, up and down can be adjusted sometimes also adjusted to one side of the high side of the low to use.

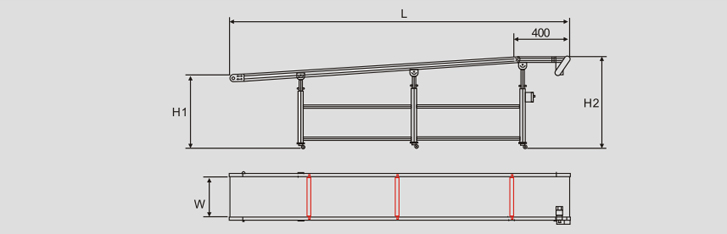

TBP series conveyor belt with platform

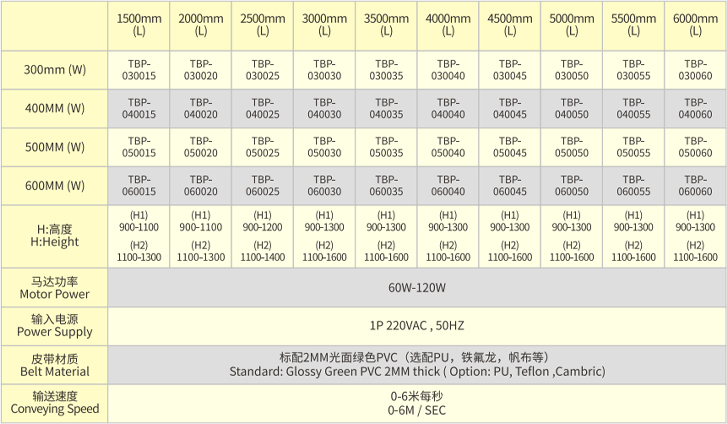

Product Specification Sheet
