TSD Series Screw Type Masterbatch Metering Machine

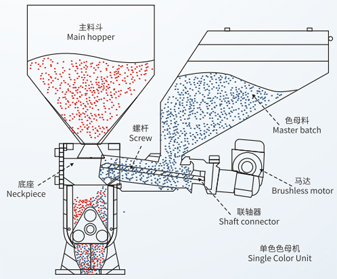

Working Principle

Synchronous work according to the melting time of the injection moulding machine, as long as the melting signal of the injection moulding machine is transmitted to the electric control box and then to the motor, the motor starts to run, and through the coupling to drive the screw to rotate the masterbatch in the hopper falls into the screw and is extruded by the screw and transported by the screw to the base, so that it can achieve the purpose of metering and transporting the colour masterbatch.

Characteristics

1、PLC control system and human-machine interface touch panel, only need to input the moulding data, it will automatically calculate the required metering speed, easy to operate, and adopts the unique compensation optimization can accurately measure the proportion of colour masterbatch and secondary materials added.

2、Screw diameter is divided into 12, 16, 20, 24 and so on, provide 0.1-100kg/hr different output for customers to choose, another colour masterbatch can be combined with any two masterbatch machines according to customer's demand.

3、Screw with chrome-plated treatment, durable, screw installation tilt angle adjustable, so that the feed to achieve a good state.

4、With 50 sets of formula access function can quickly call and start the machine to facilitate the management of moulding conditions and formula.

5、Use DC brushless motor, reliable control, long life without maintenance.

6、Modular detachable structure design is easy to clean and can quickly replace the screw and sleeve.

7, can meet the requirements of external signal input, can be applied to the extruder, only a little wiring conversion. And can synchronise with the main extruder screw acceleration and deceleration operation.

8、Detecting abnormal phenomena such as overloading of colour masterbatch blocking, it will automatically shut down to protect and alarm to ensure the continuous normal operation of the machine.

9, optional material level detection sensor, lack of material alarm.

Range of application

Masterbatch dosing machine is mainly used in injection moulding and plastic processing industry, which is suitable for automatic proportion mixing of new materials, secondary materials, masterbatch or additives. It can ensure the manufacturing of moulding can be easily and quickly according to the different percentage requirements of the original colour material into a variety of homogeneous mixing material.

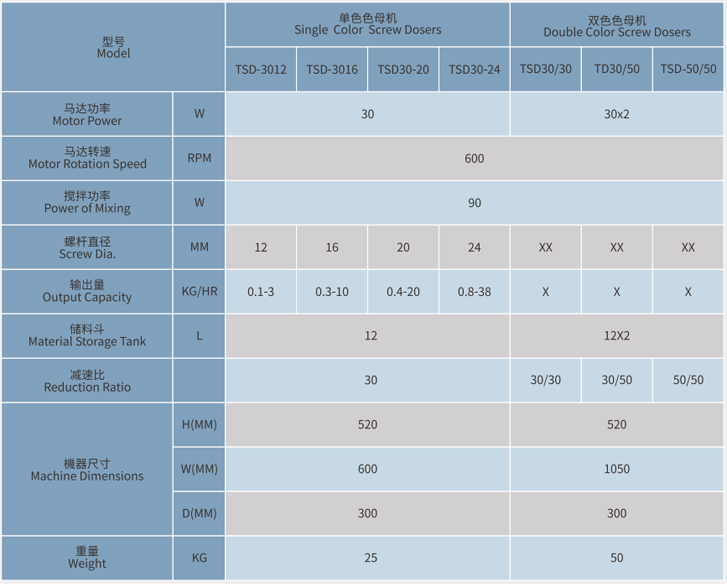

Product Specification Sheet
