TVM Series Vertical Colour Mixer

Working Principle

Multi-blade vertical paddle, generating vortex all-round mixing, mixing force is strong, is the use of rapid rotation of the screw will be the raw material from the low part of the barrel from the centre to the bottom of the top of the bottom. Then it will be thrown down in umbrella shape and return to the low part, so that the raw materials will roll up and down and mix in the barrel, and the uniform mixing will be finished in a short time, with low energy consumption and high efficiency.

Characteristics

1、The barrel is made of stainless steel, with solid and durable welding, smooth surface, easy to clean, acid-resistant and wear-resistant.

2、The blade is made of thickened stainless steel, and the distance between it and the barrel wall is finely calculated, so that even mixing can be completed in a short time, with low energy consumption and high efficiency.

3、The lid and the bottom of the barrel are press moulding, which is accurate and more durable.

4、Using vertical speed reducer motor, with sufficient horsepower to ensure low noise and durability.

5、Aesthetically pleasing appearance, small footprint, easy to move on casters.

6、Totally sealed design, no dust pollution when working.

7、The cover of the machine is equipped with a protection switch chain safety protection device to ensure the safety of the operator and machine equipment.

8、Timer can choose the mixing time from 0~30 minutes.

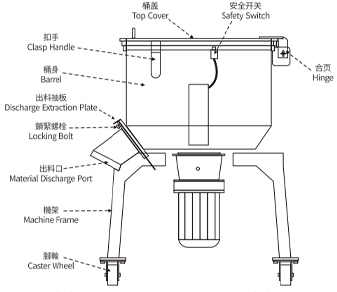

Structure

Range of application

Horizontal mixing machine has wide range of use, it can be widely used for mixing and stirring of powder, paste, granule and other materials with high efficiency.

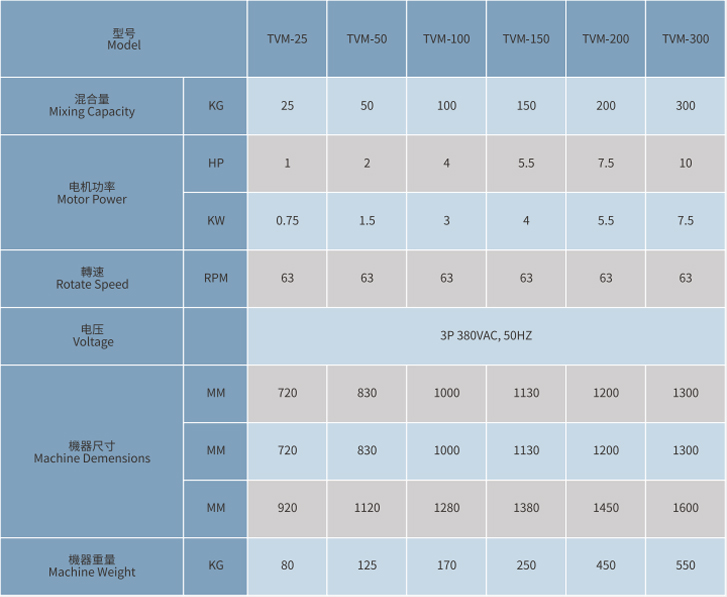

Product Specification Sheet
