TTW Series Water Type Mould Temperature Machine

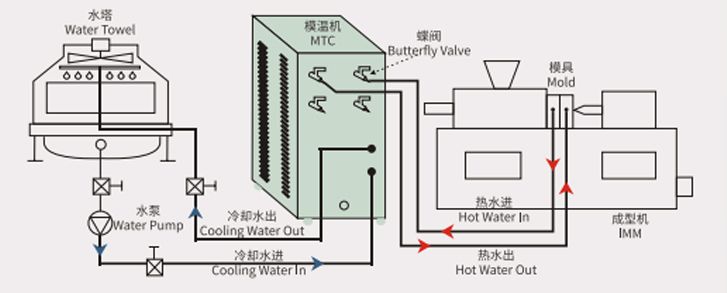

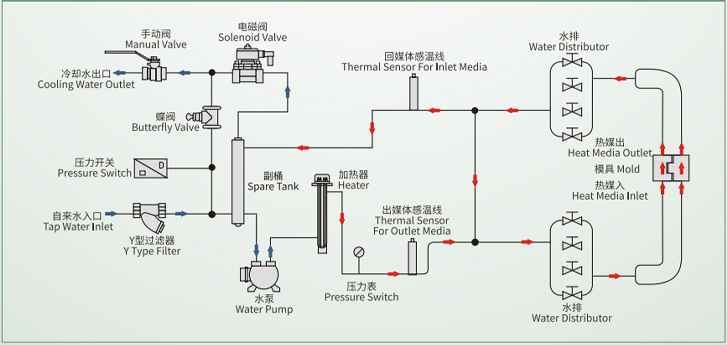

Working Principle

Characteristics

1, the use of microcomputer dual PID automatic algorithm controller, two-way control (heating / cooling), fast temperature rise and fall, the temperature is accurate and stable, the actual temperature difference can be controlled in the earth 0.1 ° C within.

2, weekly timer automatically switch on and off, can save electricity and effective arrangement of work to improve efficiency, and can support the Chinese and English switch.

3, unique heating design. Suitable for different temperature control places, energy saving effect is obvious.

4、Electrical control box and the body of the isolation design, heat insulation effect can extend the life of electrical components.

5、Safety protection and fault indication system is perfect including: no fuse breaker for the main power supply: pump reversal & overload: water shortage and overheating protection, operation and maintenance is simple and convenient.

6, parts using foreign brands to improve performance and extend service life, saving maintenance costs.

7, the main road 304 stainless steel one-piece moulding, pipe loss is small, uniform heating, good results. Long service life.

8, equipped with low liquid level and inlet low pressure protection system high-pressure protection automatic replenishment and start exhaust function.

9, the use of efficient high-temperature pumping, to achieve efficient heat exchange.

10, forced cooling function, can quickly change the mould, save time.

11, heating and cooling time fast, stable temperature.

12, the use of water as a medium for the standard heating temperature up to 120C high temperature type temperature can be as high as 160C.

13, standard RS485 communication interface can communicate with the host to achieve automation and centralised monitoring.

Range of application

Mainly used in mould heating and constant temperature. In addition, it can also be applied to other heating and constant temperature fields, such as die-casting (high temperature type mould thermostat) & printing industry (increase power type mould thermostat).

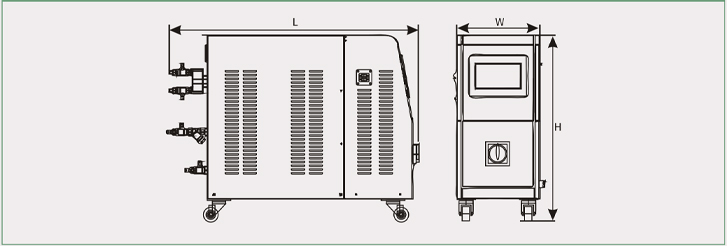

Product Size

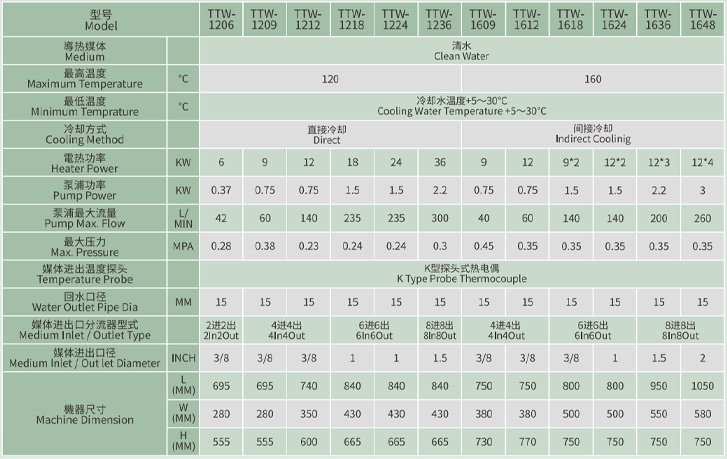

Specification table of single thermostat

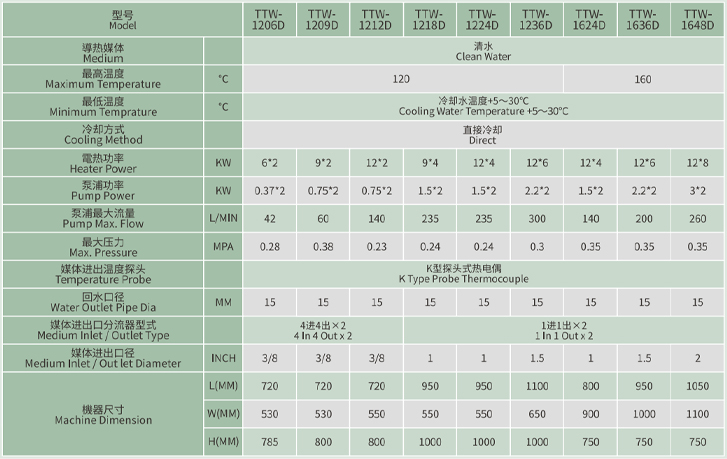

Dual Temperature Machine Specification Table
