TTO Series Oil Type Mould Temperature Machine

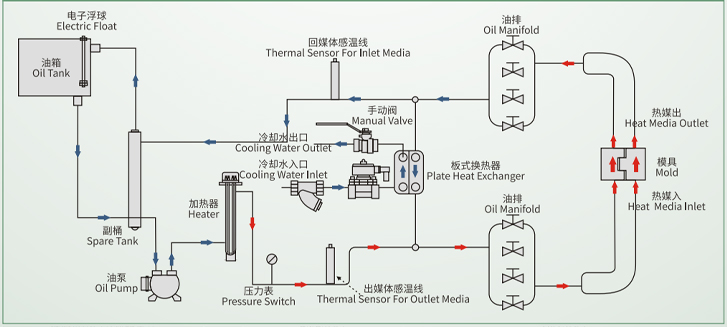

Working Principle

Characteristics

1, the use of microcomputer dual PID automatic algorithm controller can be bi-directional control (heating/cooling) fast temperature rise and fall, temperature accuracy and stability of the actual temperature difference can be controlled within 0.1C.

2、Automatic switching on and off at regular intervals during the week can save electricity and effectively arrange work to improve efficiency and can support the switching between Chinese and English.

3、Unique heating design is suitable for different temperature control places, energy saving effect is obvious.

4、Electrical control box and the body of the isolated design of heat insulation effect can extend the service life of electrical parts.

5、Safety protection and fault indication system is perfect including: no fuse breaker for main power supply; pump overload and over temperature; low liquid level and other protections, operation and maintenance is simple and convenient.

6, parts using foreign brands to improve performance and extend the service life to save maintenance costs.

7, the main road 304 stainless steel one-piece moulding pipe loss small heating uniform effect. Long service life.

8, high stability of high temperature oil as a medium standard heating temperature up to 200C high temperature type temperature can be as high as 300C.

9, standard RS485 communication interface can communicate with the host to achieve automation and centralised monitoring.

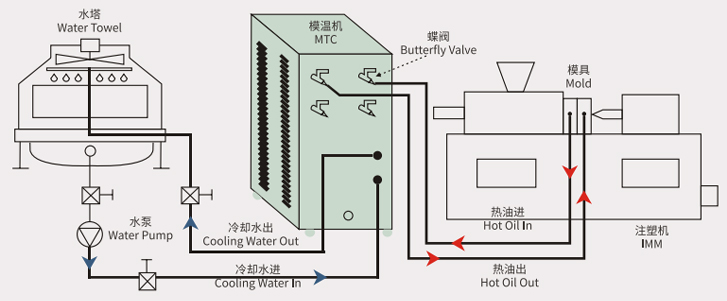

Range of application

Mainly used in mould heating and constant temperature. In addition, it can also be applied to other heating and constant temperature fields, such as die-casting (high temperature type mould thermostat) & printing industry (increase power type mould thermostat).

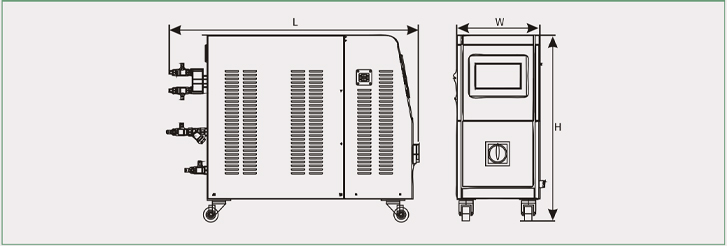

Dimensions

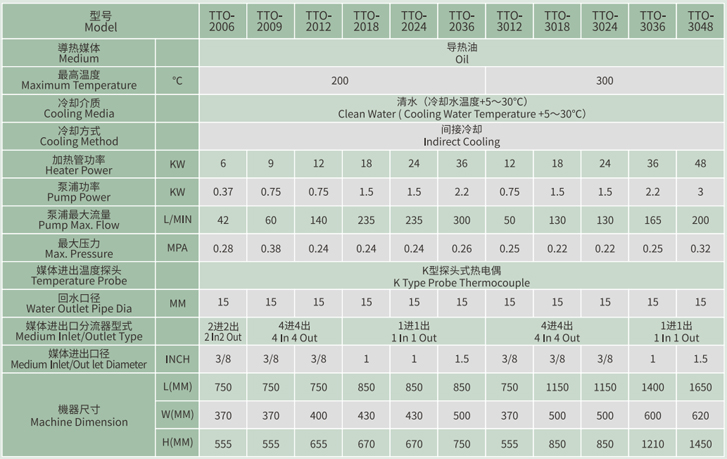

Specification table of single thermostat

Dual Temperature Machine Specification Table
