THD Series Economic Dryer

Working Principle

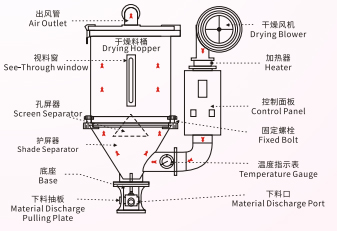

Economic dryer (up-blowing type) handles the drying process of raw materials, through the fan will be a constant wind through electric heating into a high temperature drying hot air blown into the barrel, through the screen guards and holes in the screen so that the hot air can be uniformly dispersed in the barrel baking raw materials to achieve the purpose of removing the water contained in the raw materials.

Characteristics

1、Upward blowing dryer heating elbow design, can avoid the accumulation of powder chips in the bottom of the electric heating tube, causing combustion.

2、Adopting high performance hot air diffusion device to disperse the hot air uniformly - screen with a hole screen to keep the temperature of drying plastics uniformly and increase the drying efficiency.

3、Silent fan can isolate the dust into the raw materials to ensure that the raw materials are not contaminated.

4, raw material contact surface stainless steel design, to ensure that the material is not contaminated.

5, precision die-casting aluminium shell, smooth surface, good heat preservation performance.

6, the barrel and the bottom of the separation, easy to clear the material, rapid material change

7、The barrel is designed with transparent material window, which is convenient to monitor the material level.

8、Equipped with a feed port cover, so that the installation of the suction machine.

9、With double over-temperature, overload and overheat safety protection device, can reduce the human or mechanical failure of the accident.

10, can be installed with hot air recovery (optional), so that the hot air to form a semi-closed circulation loop, accelerate the speed of hot air circulation, can reduce losses, power savings of 30%.

11, can be equipped with exhaust air filtration (optional), filtering dust gas to avoid air pollution, to ensure that the working environment of the clean, can also be installed with hopper magnets through the Pudongmei plough tube and other functions.

12、Options equipped with a seven-day timer. One week timer automatically switch on and off, can save electricity and effective arrangement of work to improve efficiency.

Product Application

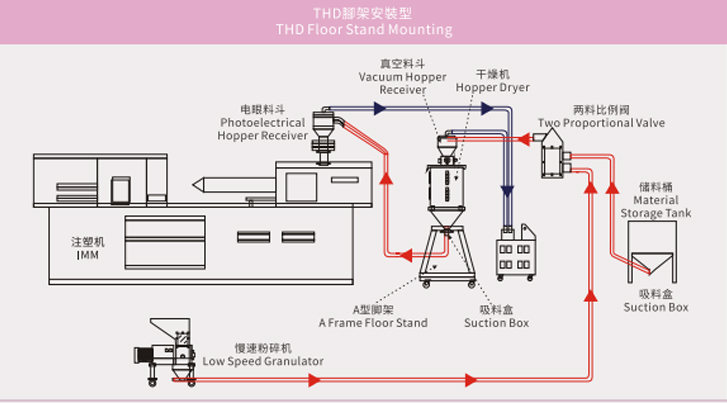

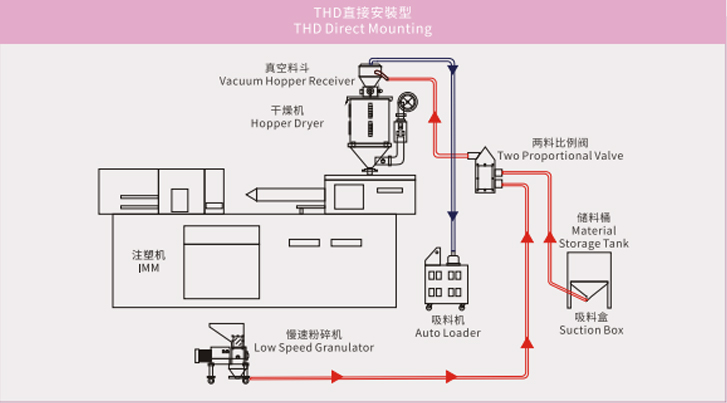

Straight type design can be installed directly on the injection moulding machine for drying, which is fast and space-saving; separate type design can be combined with different forms of stand and conveying function, especially suitable for large and vertical injection moulding machines where the height of the factory is restricted.

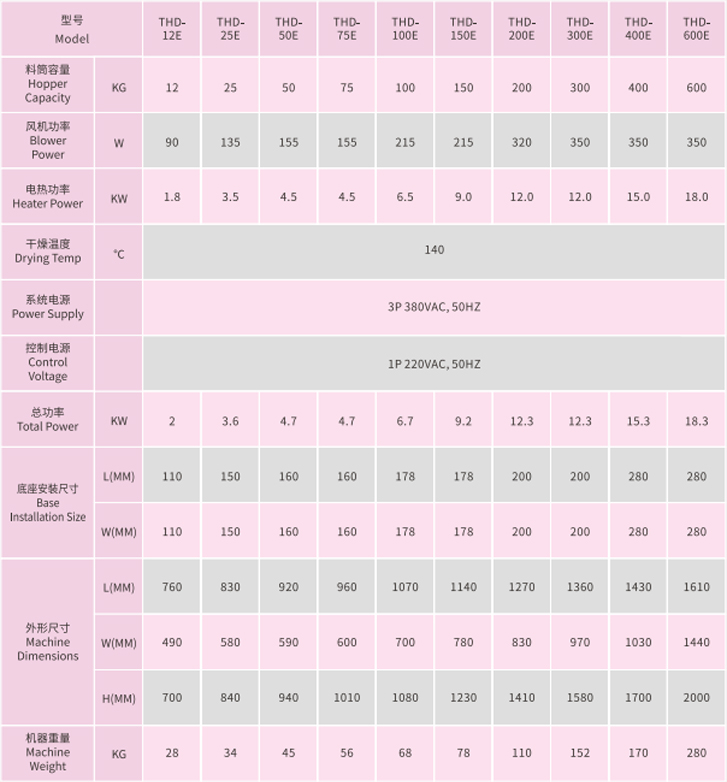

Product Specification Sheet
