TCDE series three machines in one dehumidifier dryer - energy-saving type

Drying Procedures

1, dehumidification tower in the rapid pressure reduction to obtain -40 "C dew point dehumidification gas.

2, will be sent to the workshop pressure program air in the water and oil removal and filtration and then sent to the dehumidification tower.

3, the -40C to -50 ° C dew point dehumidification gas (one-way conveyor) to the sealed vacuum dehumidification barrels non-stop, all the raw materials in the barrels of moisture sucked dry.

4, the system is a one-way gas delivery, without the use of regenerative dehumidification gas.

Characteristics

1、Using microcomputer double P...D temperature control table, touch type internal storage, automatic algorithm thermostat actual temperature difference can be controlled within 0.1 degrees, to ensure the stability of the dew point.

2, the machine set dehumidification, drying, two feeding three functions in one and can choose three feeding function.

3, time intelligent reservation heating, equipped with a week timer function, to achieve automation of the whole machine.

4, dehumidification system using the cooler structure to ensure a lower return air temperature and dew point to provide a stable supply of dry air -40C dew point of dehumidified air, temperature control is accurate and stable, significantly improve product quality.

5, the structure of the cooler using stainless steel easy to dismantle design, for dehumidification of oily plastics easier to clean.

6, insulated double-layer drying drum with a lower blowing tube design to prevent heat loss, ensure temperature, improve drying efficiency stainless steel up and down feeding system to avoid contamination of raw materials.

7、Closed circulating dehumidifying air and feeding system can avoid drying the raw materials due to contact with the outside air and moisture back again.

8、Feeding system is equipped with material cut-off valve to ensure that no residual material in the tube.

9、Adopting foreign advanced imported components to improve performance and extend the service life, saving maintenance costs.

10, the appearance of powder baking paint, beautiful and generous. Simple and compact structure, the machine occupies a small space, space-saving, easy to move, can be arbitrarily changed to use the machine, user-friendly design to facilitate maintenance and repair. The machine is easy to maintain and repair.

11、Safety and fault indication system is perfect, intelligent alarm with multiple protection devices, can reduce the human or mechanical failure produced by the accident.

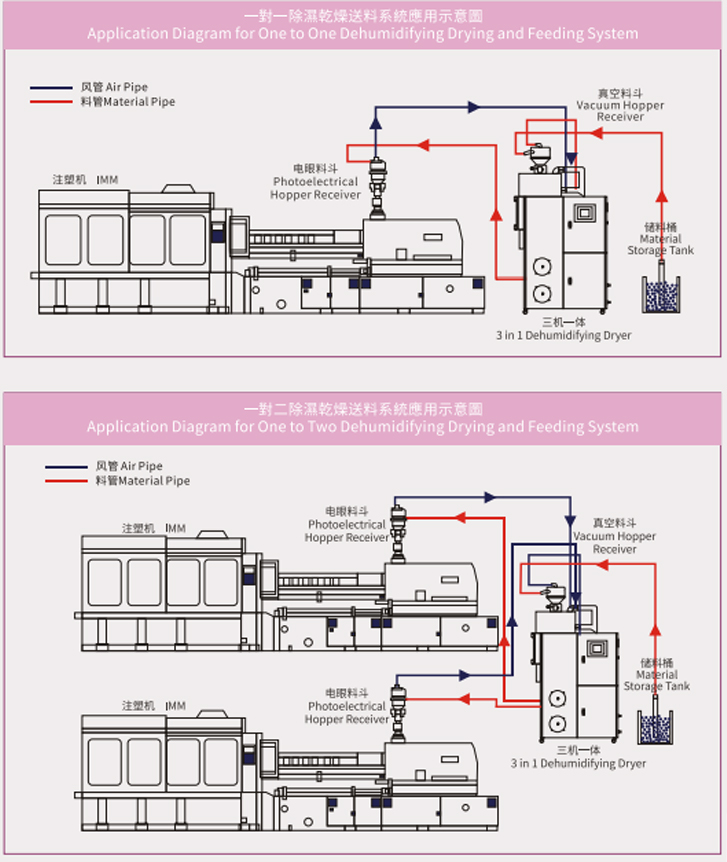

12, a pair of two dehumidification and drying feeding combination is equipped with two drying drums (optional), the drying temperature of each drum can be individually controlled, can simultaneously dehumidify and dry two different plastic raw materials mainly used with two-color molding machine.

13、Optical grade models of all raw materials contact surface with stainless steel mirror polishing treatment and with closed loop feeding system, to avoid the drying of raw materials due to contact with the outside air and moisture back again.

14, standard RS485 communication interface can communicate with the host to achieve automation and centralised monitoring.

Scope of Application

TCDE series - energy-saving non-thermal dehumidification of three machines in one this device is compact, especially for the high degree of automation, the space is compact place. Suitable for high precision requirements of plastic products, including medical, optical products such as lenses and LCD, but also for connectors, precision gears, mobile phones, digital cameras and product size requirements of strict requirements of the production of precision injection using engineering plastics products, so that the raw material wet drying after the water content is low and stable and consistent, to meet the stringent technical and quality requirements.

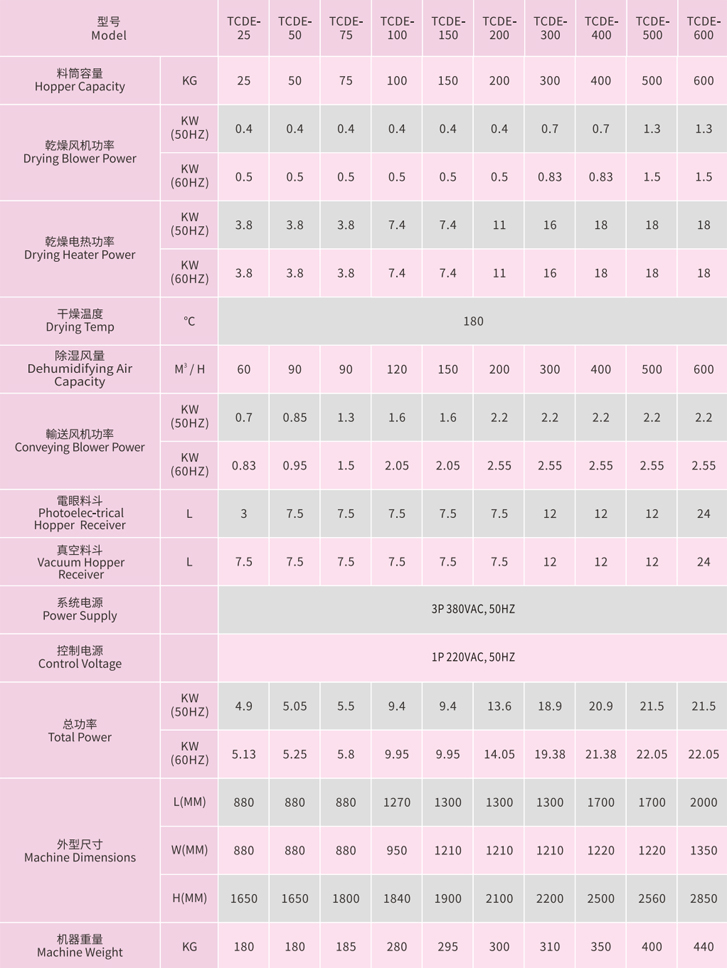

Product Specification Sheet
