THD Series Stainless Steel Dryer

Working Principle

Stainless steel dryer (down-blowing type), the wind blown by the fan is heated electrically to become high-temperature drying hot air, using the principle of "hot air down-blowing" and "air cyclone exhaust" to ensure even and uniform drying effect and improve drying efficiency.

Characteristics

　　1、Adopting the principles of "hot air blowing down" and "air cyclone exhaust" to ensure uniform drying effect and improve drying efficiency.

　　2、Adopting P.I.D temperature control system, which has the actual temperature display screen and accurate temperature control 1C.

　　3、Adopting high humidity and sun-heat type fan to prolong the life of the machine.

　　4、The contact surface of raw material adopts stainless steel design to ensure that the raw material is not contaminated.

　　5、Automatic switching on and off of the machine at regular intervals of a week can save electricity and effectively arrange the work to improve the efficiency.

　　6, made of double-layer stainless steel insulation cotton material, heat preservation effect is good.

　　7、The barrel body is designed with transparent material window, which is convenient to monitor the material level.

　　8、Equipped with a feed port cover to facilitate the installation of the suction machine.

　　9、With double over-temperature, overload and overheat safety protection device can reduce the accident caused by human or mechanical failure.

　　10, add hot air recovery (optional) so that the hot air to form a semi-closed loop circuit, accelerate the speed of hot air circulation, can reduce the loss of power savings of 30%.

　　11、Can be equipped with exhaust air filtration (optional). Filter dust and gas to avoid air pollution, to ensure a clean working environment, can also be installed hopper magnet filtration of iron impurities and other functions.

Applications

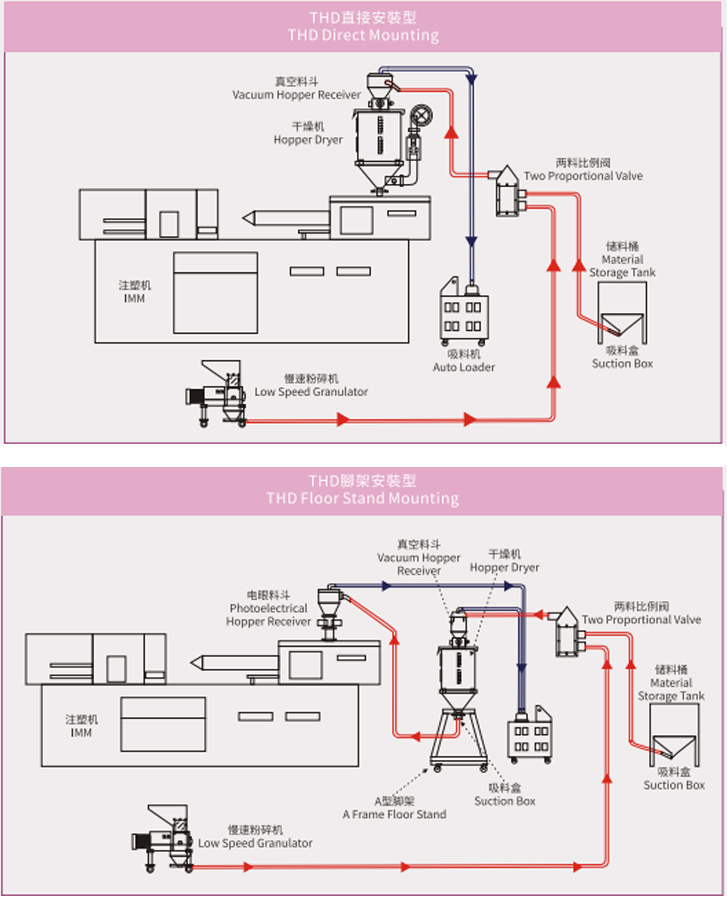

Straight knot design can be installed directly on the injection moulding machine for drying, which is both fast and space-saving: Separate design can be combined with different forms of stand and conveying function, which is especially suitable for large and vertical injection moulding machines where the height of the factory is restricted.

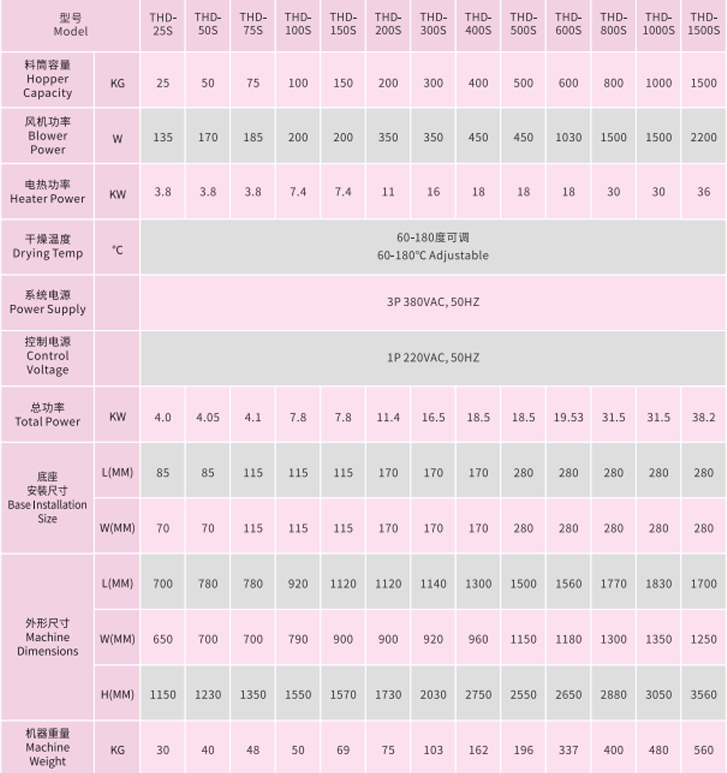

Product specification table
