TDH Series Honeycomb Rotor Dehumidifier

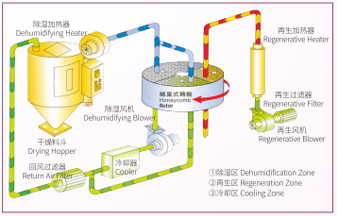

Working Principle

The honeycomb ceramic rotor is divided into three zones: dehumidification, regeneration and cooling. The rotor is driven by a gear motor and operates continuously at the appropriate speed. The high humidity air is sent to the dehumidification and drying zone by means of a dehumidification blower through the return air filter. The humid air passes through the dehumidification zone, the moisture in the air is absorbed and the dry air is sent to the drying material. The water absorbed by the rotor enters the regeneration zone before it becomes saturated. Air through the regeneration windmill through the regeneration filter is drawn and then heated by the regeneration heater, into the regeneration area, the water in the rotor is high along the drying wind evaporated and discharged, the rotor regeneration area rotates into the cooling area cooling, this one dehumidification regeneration cooling cycle process is continuously carried out.

Specificities

　　1、Equipped with microcomputer control, can accurately control the regeneration temperature, the actual temperature difference can be controlled within 0.1 degrees, to ensure the stability of the dew point.

　　2、Using imported honeycomb rotor continuous load operation can provide dry air to maintain the dew point at -32C-40, such as with chilled water and even up to -40C below. The dry dew point is smooth and the temperature control is precise and stable.

　　3, the use of silica gel adsorption honeycomb dehumidification regeneration temperature of only 150C, compared to the molecular sieve structure requires more than 200C regeneration temperature more energy-saving.

　　4, the internal return air filter, to ensure that the honeycomb rotor is not contaminated by raw material dust.

　　5, the dehumidification system uses a cooler structure to ensure a lower return air temperature and dew point, to provide a stable supply of dry air -40C dew point of dehumidified air, temperature control precision and stability significantly improve product quality.

　　6, the structure of the cooler using stainless steel easy to dismantle design, for dehumidification of oily plastics, easier to clean.

　　7, the use of foreign high-level imported components to improve performance and extend the service life, saving maintenance costs.

　　8, the appearance of powder baking paint, beautiful and generous. Simple and compact structure, the machine occupies a small space, space-saving, easy to move, can be arbitrarily replaced by the use of the machine, user-friendly design to facilitate maintenance and repair.

　　9、Safety and fault indication system is perfect, intelligent alarm with multiple protection devices, can reduce the human or mechanical failure of the accident.

Scope of application

Fruit type Acer rotor dehumidifier dryer is mainly used in all fields of drying treatment. Especially for the hygroscopic plastics such as PET, PBT, PA, PC, etc. need ultra-low dew point -40 "C for drying equipment.

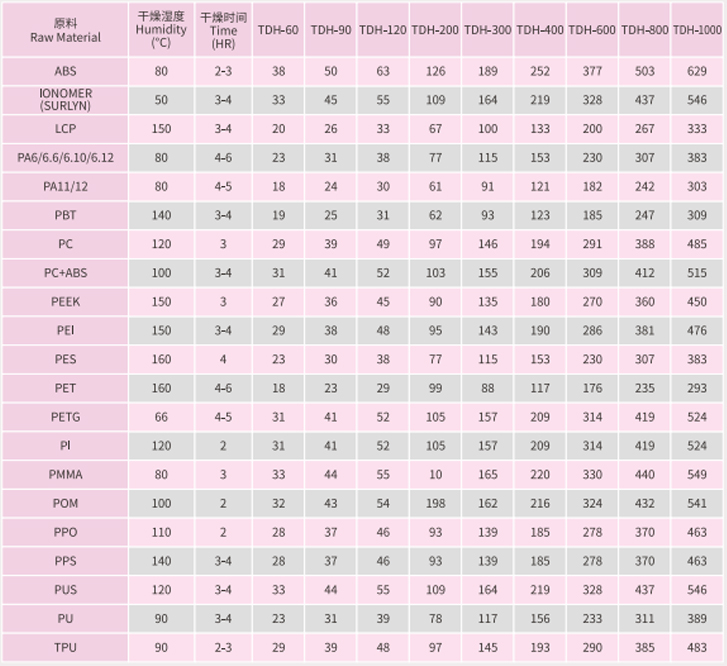

Drying capacity table

　　This table is for the drying capacity of the raw material with moisture content less than 200PPM at the atmospheric temperature of 20°C and relative humidity of 65%.

　　Selection: 60HZ, according to the hourly consumption of the injection moulding machine, compared with the raw material and the drying capacity can find a suitable model, 50HZ according to the hourly consumption of the injection moulding machine, compared with the raw material and the drying capacity of 80%~85% can find a suitable model.

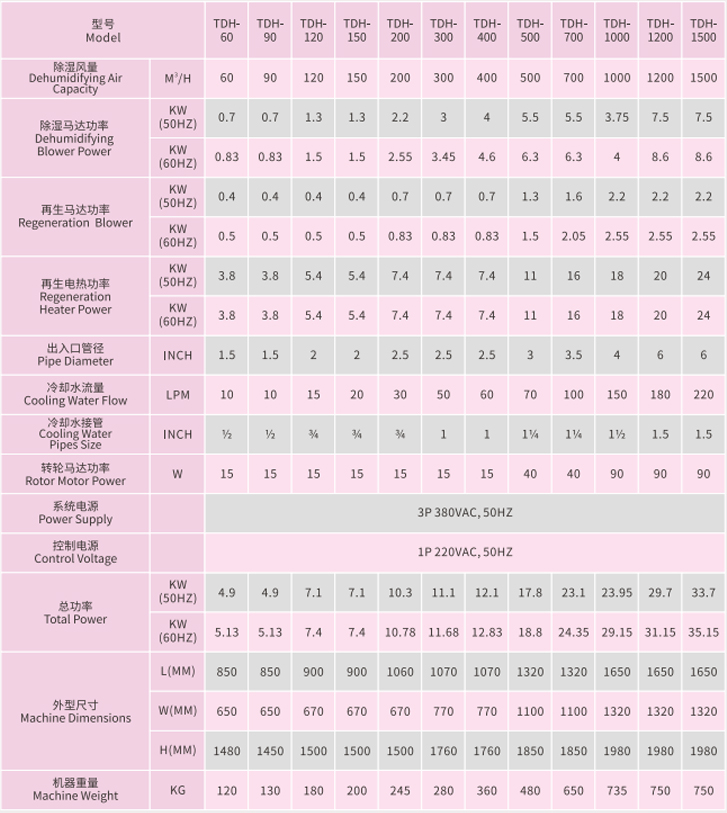

Product Specification Sheet
