TCDH series three machines in one dehumidifier dryer - honeycomb rotor type

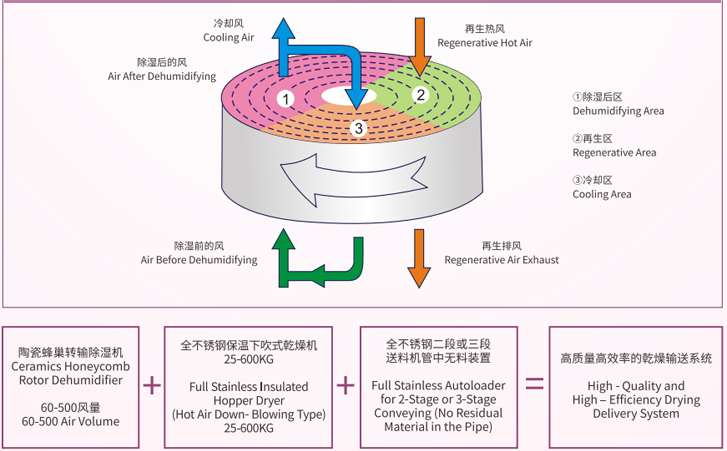

Working Principle

Features

1、Equipped with microcomputer control, can accurately control the regeneration temperature, the actual temperature difference can be controlled within 0.1 degrees, to ensure the stability of the dew point.

2, the machine set dehumidification, drying, two feeding three functions in one, and can choose three feeding functions.

3、time intelligent reservation heating with a week timer function to achieve automation of the whole machine.

4, dehumidification system using a cooler structure to ensure a lower return air temperature and dew point, to provide a stable supply of dry air -40 dew point of dehumidified air temperature control is accurate and stable, and significantly improve product quality.

　　5, the use of silica gel adsorption honeycomb dehumidification, regeneration temperature of only 150C, compared to the molecular sieve structure requires more than 200C regeneration temperature more energy-saving.

　　6, the internal return air filter, to ensure that the honeycomb rotor is not contaminated by raw material dust.

　　7, insulated double-layer drying drum with a lower blowing duct design to prevent heat dissipation to ensure that the temperature, improve the drying efficiency, stainless steel upper and lower feeding system to avoid contamination of raw materials.

　　8、Closed circulating dehumidifying air and feeding system can avoid drying the raw materials due to contact with the outside air and moisture back again.

　　9、Feeding system is equipped with material cut-off valve to ensure that there is no residual material in the tube.

　　10、Adopting imported foreign high-level components to improve performance and extend the service life, saving maintenance costs.

　　11, the appearance of powder baking paint, beautiful and generous. Simple and compact structure, the machine occupies a small space, space-saving, easy to move, can be arbitrarily replaced with the use of the machine, user-friendly design to facilitate maintenance and repair.

　　12、Safety and fault indication system is perfect, intelligent alarm with multiple protection devices, can reduce human or mechanical failure of the accident.

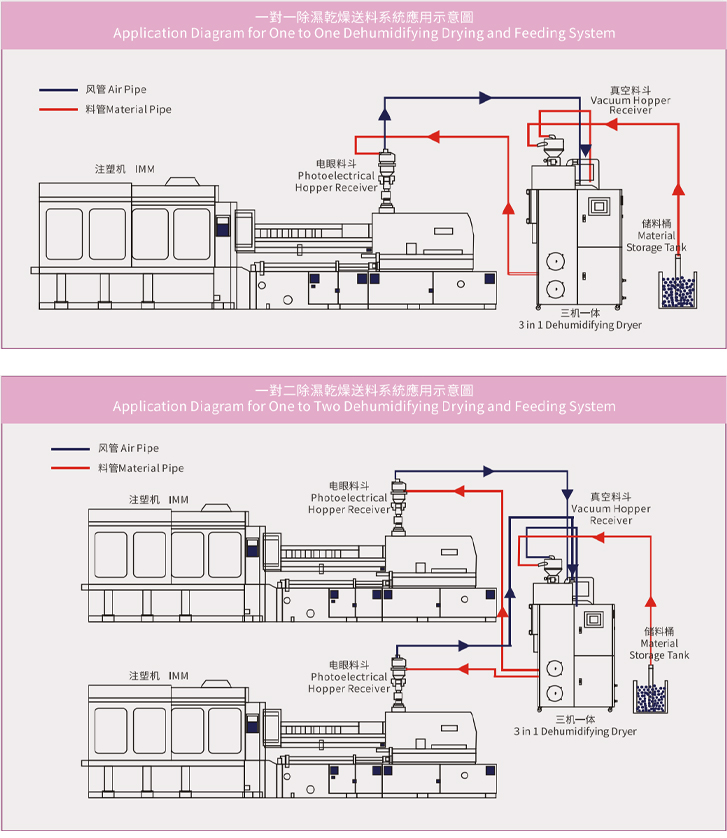

　　13, a pair of two dehumidification and drying feeding combination is equipped with two drying drums (optional), the drying temperature of each drum can be individually controlled, can simultaneously dehumidification and drying of two different plastic raw materials, mainly used with two-color molding machine.

　　14、Optical grade model all raw material contact surface adopts stainless steel mirror polishing treatment, and with the closed circuit feeding system, can avoid drying raw materials due to contact with the outside air and back to moisture again.

　　15, standard RS485 communication interface can communicate with the host to achieve automation and centralised monitoring.

Scope of application

TTCDH series - Bee fruit rotor type three machines in one, suitable for high precision requirements of the plastic products, the scope covers the medical aspects, lenses and LCD and other optical products, also suitable for connectors, precision gears, mobile phone communications, digital cameras and product size requirements of the strict requirements of the production of precision injection moulding using engineering plastics products, so that raw materials after drying the moisture content of the raw material is low and stable and consistent, can meet the stringent technical and quality requirements. It can meet the strict technical and quality requirements.

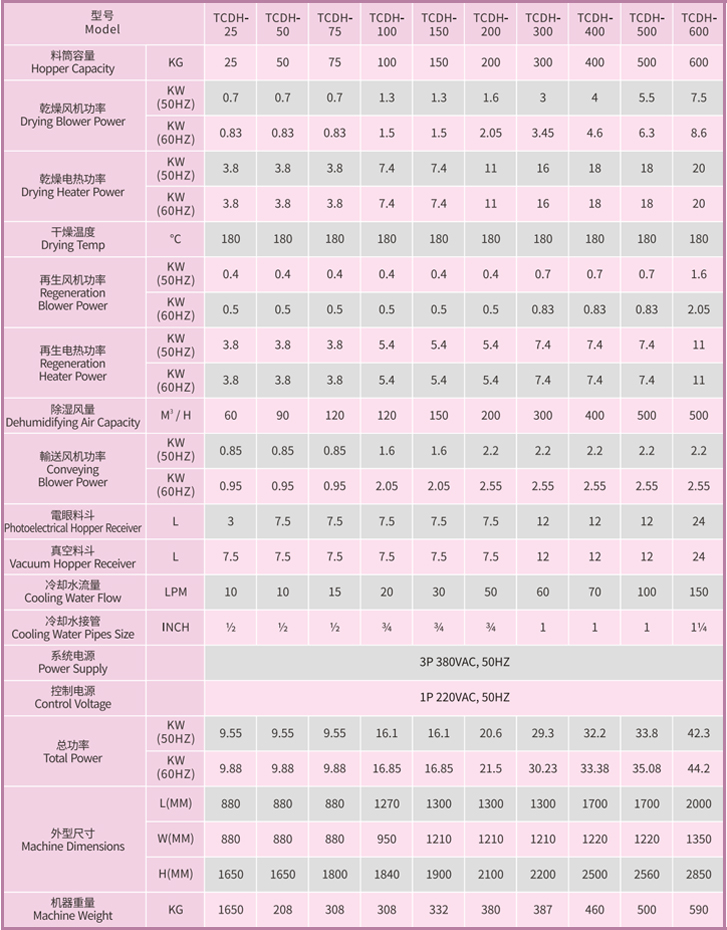

Product Specification Sheet
